CES | Object/fire doors

DIN classes, European standard and CE classification

DIN 18251-1, DIN 18250, EN 12209

Because of their frequent door use, contract business locks have to be particularly sturdy. The locks are classified in accordance with their respective intended use (DIN classes 3-5).

Increased requirements apply to locks in fire doors. The "Prüfinstitut Schlösser und Beschläge" (Testing Institute for Locks and Hardware) in Velbert tests and certifies the fire protection locks from CES in accordance with the requirements of the European standard EN 12209.

These are CE-marked as a visible proof that the CES fire protection locks comply with EU requirements.

Fire-rated locks - Premium class

For single-leaf doors

Standard lock

Sashlock with anti-thrust latch

Nightlatch-lock

Nightlatch-lock with anti-thrust latch

Deadlock

Bathroom-lock

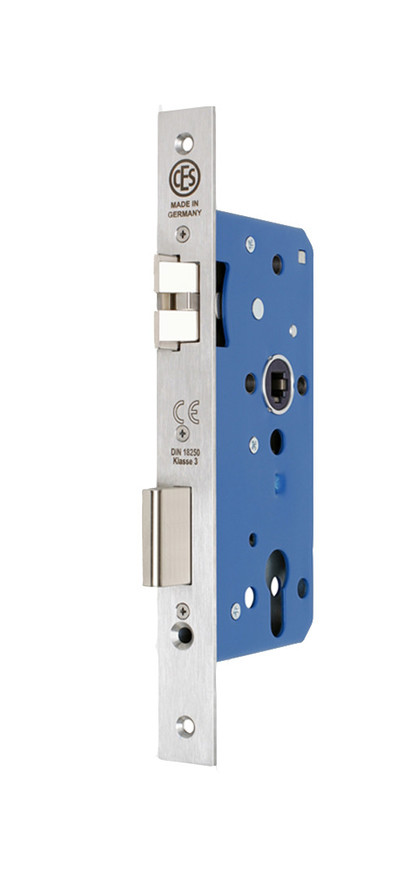

Fire protection lock

DIN 18250, DIN EN 12209

Backset 55 (60, 65, 70, 80) mm
Centre distance 72 mm
TENAX clamp follower 9 mm, mounted in zinc-plated steel rings
Forend 20 x 235 mm for rebated doors, or 24 x 235 mm for flush doors, edged or rounded, satin stainless steel (1.4301/AISI 304)
Triple latch made of steel, nickel-plated
Massive steel deadbolt, nickel-plated, 2-throw with
20 mm projection

To the datasheetPDF

Fire protection lock with anti-thrust latch

DIN 18250, DIN EN 12209

mechanical latch safety mechanism (anti-thrust latch)
Backset 55 (60, 65, 70, 80) mm
Centre distance 72 mm
TENAX clamp follower 9 mm, mounted in zinc-plated steel rings
Forend 20 x 235 mm for rebated doors, or 24 x 235 mm for flush doors, edged or rounded, satin stainless steel (1.4301/AISI 304)
Triple latch made of steel, nickel-plated
Massive steel deadbolt, nickel-plated, 2-throw with
20 mm projection

To the datasheetPDF

Fire protection latch-lock

DIN 18250, DIN EN 12209

Backset 55 (60, 65, 70, 80) mm
Centre distance 72 mm
TENAX clamp follower 9 mm, mounted in zinc-plated steel rings
Forend 20 x 235 mm for rebated doors, or 24 x 235 mm for flush doors, edged or rounded, satin stainless steel (1.4301/AISI 304)
Triple latch made of steel, nickel-plated

To the datasheetPDF

Fire protection latch-lock with anti-thrust latch

DIN 18250, DIN EN 12209

mechanical latch safety mechanism (anti-thrust latch)
Backset 55 (60, 65, 70, 80) mm
Centre distance 72 mm
TENAX clamp follower 9 mm, mounted in zinc-plated steel rings
Forend 20 x 235 mm for rebated doors, or 24 x 235 mm for flush doors, edged or rounded, satin stainless steel (1.4301/AISI 304)
Triple latch made of steel, nickel-plated

To the datasheetPDF

Fire protection deadlock

DIN 18250, DIN EN 12209

Backset 55 (60, 65, 70, 80) mm
Forend 20 x 235 mm for rebated doors, or 24 x 235 mm for flush doors, edged or rounded, satin stainless steel (1.4301/AISI 304)
Massive steel deadbolt, nickel-plated, 2-throw with
20 mm projection

To the datasheetPDF

Fire protection bathroom-lock

DIN 18250, DIN EN 12209

Backset 55 (60, 65, 70, 80) mm
Centre distance 78 mm
TENAX clamp follower 9 mm, mounted in zinc-plated steel rings
Forend 20 x 235 mm for rebated doors, or 24 x 235 mm for flush doors, edged or rounded, satin stainless steel (1.4301/AISI 304)
Triple latch made of steel, nickel-plated
Massive steel deadbolt, nickel-plated, 2-throw with
20 mm projection

To the datasheetPDF

Locks for industrial and administrational buildings

DIN 18251-1, class 3

DIN 18251-1, class 4

DIN 18251-1, class 5

Contract business lock for apartment entrance doors

and public buildings

Backset 55 (60, 65, 70, 80) mm
Centre distance 72 mm
Fixed follower 8 (9), mounted in zinc-plated steel rings
Forend 20 x 235 mm for rebated doors, or
24 x 235 mm for flush doors, edged or rounded,
satin stainless steel
Latchbolt and deadbolt made of steel, nickel-plated
Variants: WC/bathroom, warded lock

To the datasheetPDF

Lock for administration buildings

with break-in resistance

Backset 55 (60, 65, 70, 80, 90, 100) mm
Centre distance 72 mm
Fixed follower 8 (9), mounted in zinc-plated steel rings
Forend 20 x 235 mm for rebated doors, or
24 x 235 mm for flush doors, edged or rounded,
satin stainless steel
Latchbolt and deadbolt made of steel, nickel-plated
Variants: WC/bathroom

To the datasheetPDF

Lock for administration buildings

with increased break-in resistance

Backset 55 (60, 65, 70, 80, 90, 100) mm
Centre distance 72 mm
Fixed follower 8 (9), mounted in zinc-plated steel rings
Forend 20 x 235 mm for rebated doors, or
24 x 235 mm for flush doors, edged or rounded,
satin stainless steel
Latchbolt and deadbolt made of steel, nickel-plated

To the datasheetPDF
